AMBIENT
INVERTOR heat pump with modulating output air-water system for indoor installation
- Very quiet operation
- Active cooling function
- Seasonal energy efficiency 191 %
- Annual average SCOP 4.85
- Intelligent cooperation with PV
- Very quiet operation
- Active cooling function
- Seasonal energy efficiency 191 %
- Annual average SCOP 4.85
- Intelligent cooperation with PV
PUMP FEATURES
This heat pump system features advanced inverter technology that adapts the heat pump’s output to the immediate needs of the heating system. This ensures maximum thermal comfort at all times in a particularly economical operating mode. The indoor unit draws energy from the outside air even at – 20 °C.
AMBIENT heat pumps are installed indoors, where their pleasant design and very low noise level keep them from being disruptive. They are connected to the outside environment by thermally and acoustically insulated air ducts terminating in special cover grilles fitted into the building’s perimeter wall. Connecting a heat pump to an ambient air heat source has never been easier. The excellent noise values and the outdoor optics of the air ducts make these pumps a safe and clean solution.

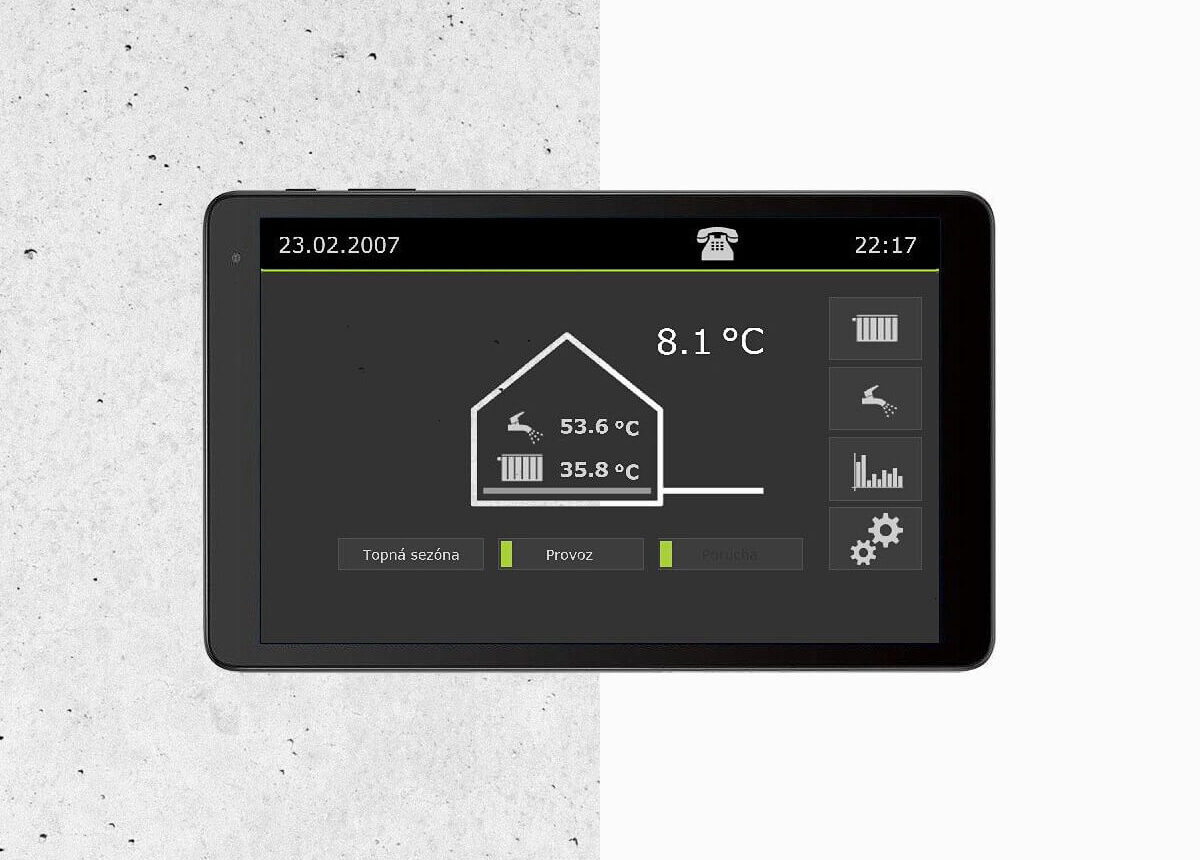

Setting heat pump and heating system parameters is easy and intuitive using the touchscreen. Operating states and parameters, such as the current coefficient of performance, are clearly shown on a seven-inch color LCD display. The operating unit is equipped for internet connection by default.
AMBIENT heat pumps are available in two models with a heating capacity range of 4-13 kW and 8-22 kW. According to the new ErP directive (valid from 2019), these heat pumps achieve energy class A+++. The AMBIENT model is also available with active cooling.
AMBIENT heat pumps meet strict Ecodesign requirements and are eligible for subsidies.
DOWNLOAD
TECHNICAL PARAMETERS
| Type designation | HP3AW 08 A | HP3AW 08 AR | HP3AW 16 A | HP3AW 16 AR |
| SVT code | SVT 23105 | SVT 23107 | SVT 23106 | SVT 23108 |
| Energy class (35 °C) |  | | | |
| Energy efficiency heating Ƞs (35 °C) | 189 % | 189% | 191% | 191,1 % |
| SCOP (35 °C) | 4,81 | 4,81 | 4,85 | 4,85 |
| Energy parameters (kW) | ||||
| Heating capacity (A7/W35) | 4,5 — 10,0 | 4,5 — 10,0 | 8,5 — 16,0 | 8,5 — 16,0 |
| Coefficient of Performance (A7/W35) | 4,95 | 4,95 | 4,91 | 4,91 |
| Cooling capacity (A35/W18)(kW) | — | 6,5 — 11,5 | — | 6,5 — 16,5 |
| Other parameters | ||||
| Noise level at 3 m (dB) | 34,3 | 34,3 | 37,3 | 37,3 |
| Compressor / Control / Refrigerant | MITSUBISHI Scroll / INVERTOR / R410A | |||
| Dimensions (mm) | w 1045 d 770 h 1770 | w 1045 d 770 h 1770 | w 1045 d 770 h 1770 | w 1045 d 770 h 1770 |
| Weight (kg) | 263 | 268 | 285 | 290 |
| Order number | W20369 | W20371 | W20370 | W20372 |
Easy assembly
The future in heating for its indisputable advantages of easy installation and universal use.
Heating capacity
Air-water heat pumps are characterised primarily by their high heating capacity and heating factor.
Quiet operation
Reliable operation even at extreme outdoor temperatures and very low noise levels.
